CNC Wire Cut Machine — Used, Inspected, For Sale in Sialkot, Pakistan

About this Wire Cut EDM CNC

A Wire Cut EDM (Electrical Discharge Machine) uses a thin, electrically-charged brass or coated copper wire — submerged in a dielectric fluid — to cut precise profiles in any electrically conductive material. Unlike conventional milling or grinding, EDM removes material through controlled electrical sparks, with no mechanical contact between wire and workpiece. This makes it the only viable cutting method for hardened tool steels, tungsten carbide inserts, titanium alloys, and exotic metals where traditional machining is too slow or impossible.

The CNC (Computer Numerical Control) system on this machine handles complex 2D contours, tapered cuts, and tight-tolerance multi-pass strategies automatically. Typical achievable accuracy is ±0.005 mm with surface finish suitable for die work without secondary lapping. The CNC also enables unmanned overnight operation — a major productivity gain in tool-and-die shops, surgical instrument plants, and aerospace job shops.

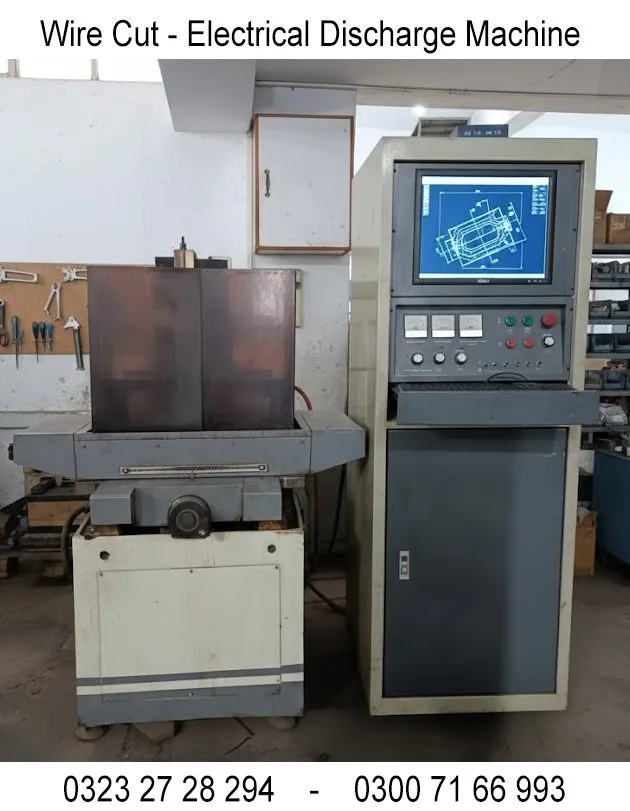

This CNC wire cut machine is inspected and in working condition at our facility on Shahpura Road Industrial Area, Sialkot. CNC wire cut machine price in Pakistan for this unit: PKR 5,50,000 negotiable — direct from owner, no broker. Also known as wirecut EDM or CNC EDM machine; same type new starts at PKR 15 lakh+. We deliver across Punjab — Sialkot, Gujranwala, Wazirabad, Daska, Sambrial, Pasrur, Narowal, Gujrat, Kharian, Sheikhupura, Hafizabad, Mandi Bahauddin, Jhelum and Lahore — all major cities within roughly 120 km. On-site demonstration welcome by appointment; live WhatsApp video walk-through available first. Pricing is always discussed directly on WhatsApp — we share details and our best price for your specific application.

Typical applications

• Tool & die manufacturing — punches, dies, mold inserts
• Surgical instrument production — cutting forms, complex profiles (Sialkot specialty)
• Aerospace components — turbine blade slots, fir-tree roots
• Medical device manufacturing — micro-features in stainless and titanium
• Automotive — gear hobs, forming tools, precision fixtures
• Cutlery and edge tools — Sialkot’s core export industry

Why buy used from us

• Quality used unit — same tolerance class as a new machine, in working condition, at a fraction of the new-machine investment.
• Sialkot’s industrial ecosystem means easy access to spare parts, EDM wire, and service technicians.
• Inspected before sale, with a live video demonstration available before any commitment.
• Direct from owner — no broker, no markup. Pricing always discussed on WhatsApp.

CNC wire cut machine price in Pakistan — new vs used

Buyers searching for a CNC wire cut machine price in Pakistan face a wide range. New machines imported from China, Taiwan or Japan carry duties, freight and dealer margins that add 25–40% on top of the ex-factory price. A used, inspected unit bought directly from a local owner is almost always the fastest route to production for a Pakistani machine shop.

New — Chinese brand (entry-level clone)	PKR 12,00,000 – 20,00,000
New — Taiwanese brand (Chmer, Excetek)	PKR 30,00,000 – 60,00,000
New — Japanese brand (Sodick, Mitsubishi, Fanuc)	PKR 80,00,000 – 1,50,00,000+
This used unit — inspected, working, Sialkot	PKR 5,50,000 (negotiable)

The used price is 70% below the cheapest new Chinese import. The machine cuts to the same ±0.005 mm tolerance. For a Sialkot surgical instrument factory or Gujranwala tool-and-die shop, the ROI on a wire-cut EDM is fast — a single die set or mold insert that would have been sent to Karachi or Lahore for external EDM cutting can now be done in-house, at roughly PKR 500–PKR 1,500 per hour of machine time versus PKR 3,000–PKR 8,000 outsourced.

Monthly running costs — what to budget

• Brass wire (0.25 mm) — PKR 3,000–5,000/kg. A production day uses 1–3 kg depending on cut length and thickness. Budget PKR 3,000–15,000/day of cutting.
• Dielectric (deionized water + inhibitor) — deionization resin cartridge PKR 2,000–5,000, lasts 3–6 months under normal use.
• Power — industrial 3-phase, approximately 8–15 kWh per hour of active cutting. At PKR 35–50/kWh industrial tariff: PKR 280–750/hour.
• Wear parts (wire guides, power feed contacts) — PKR 5,000–20,000/year depending on usage. Available from Karachi import dealers and Lahore electronics distributors.
• Servicing — CNC calibration and maintenance: PKR 10,000–30,000 per visit. Technicians available in Sialkot, Lahore and Karachi.

Running a wire-cut EDM in Pakistan — wire, dielectric, and service

EDM brass wire (0.25 mm is the standard diameter for most die work; 0.20 mm for fine detail) is available from metal and engineering supply traders in Sialkot, Lahore's Hall Road and Shah Alam Market, and Karachi's Saddar engineering cluster. Cost is approximately PKR 3,000–PKR 5,000 per kg depending on wire grade and coating; a typical production day uses 1–3 kg. Dielectric fluid is deionized water with EDM rust inhibitor — a deionization resin cartridge costs PKR 2,000–PKR 5,000 and lasts several months under normal use. Upper and lower guide assemblies and power feed contacts are the primary wear parts; these are available from Karachi's import parts dealers and Lahore's electronics distributors for most machine origins.

Service technicians familiar with CNC wire-cut EDMs are based in Sialkot, Lahore, and Karachi. For buyers outside Punjab — Peshawar's Hayatabad Industrial Estate, Faisalabad's textile machinery workshops, or Karachi's tool-and-die sector — the machine can be loaded onto a cargo truck or Daewoo Express cargo from the Sialkot facility; the buyer arranges onward freight. Payment by IBFT bank transfer or cash; a 20 % advance confirms the sale while transport is arranged. An initial test cut on your own material can be run at the Sialkot facility before collection. If your workshop also needs flat-face grinding or surface preparation, a rotary surface grinder (PKR 5,50,000) and a vibratory finishing machine (PKR 5,00,000) are available at the same location — WhatsApp +92 300 7166993 to discuss a combined deal.
